SIMULATION

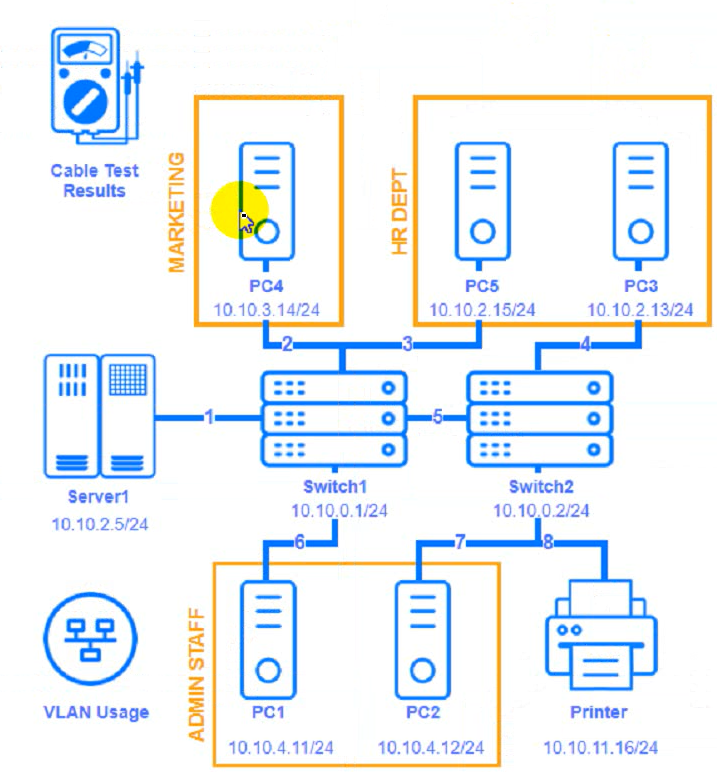

A network technician needs to resolve some issues with a customer's SOHO network.

The customer reports that some of the devices are not connecting to the network, while others appear to work as intended.

INSTRUCTIONS

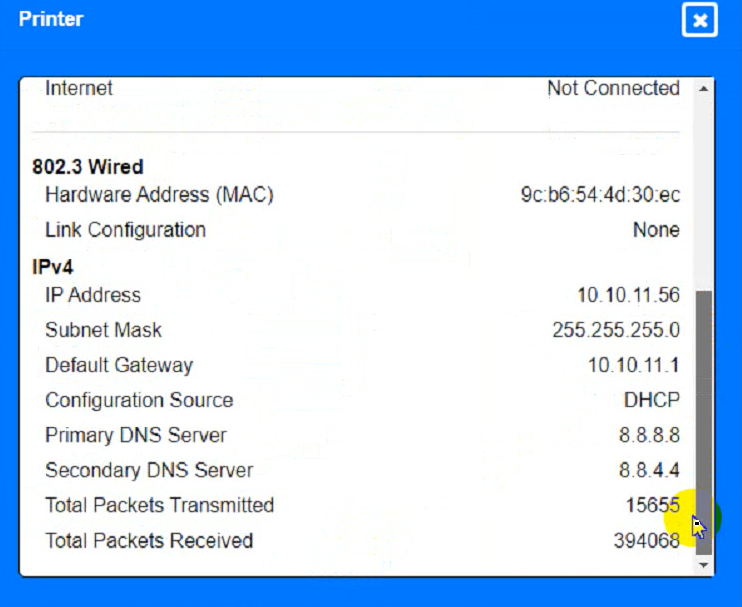

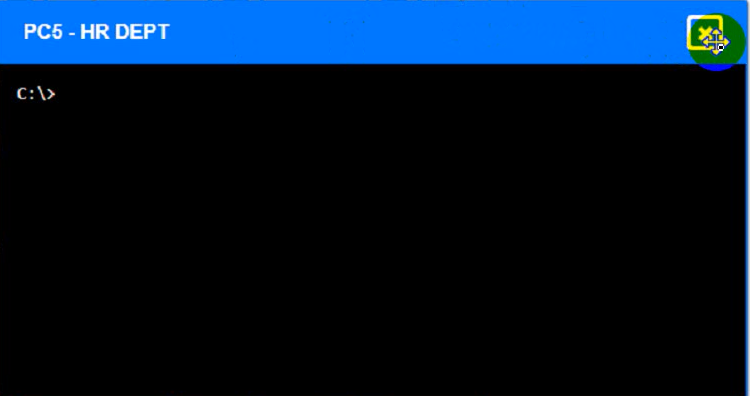

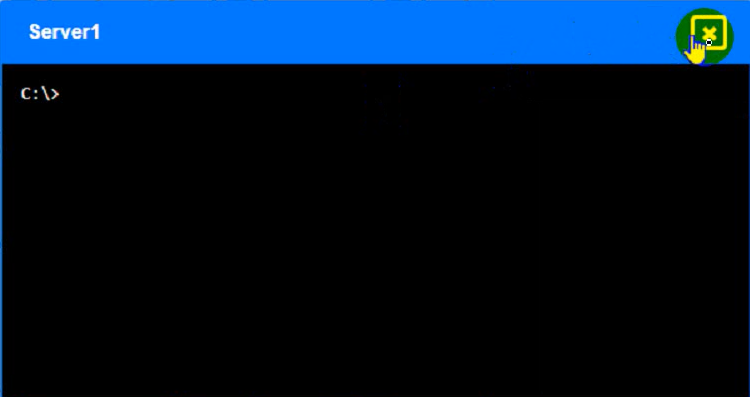

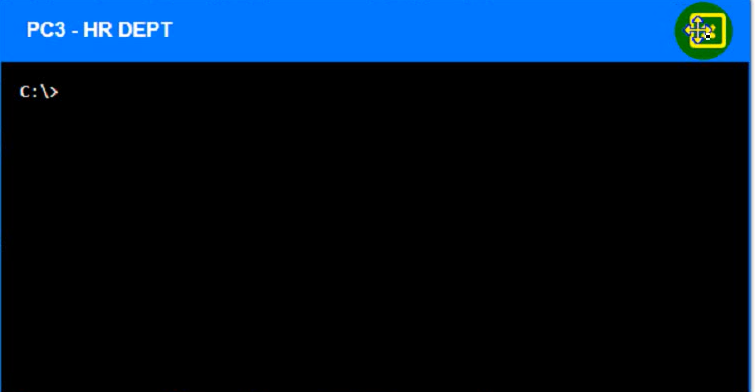

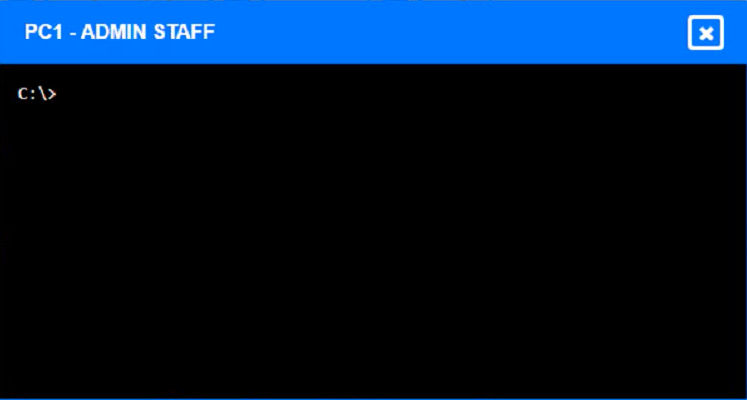

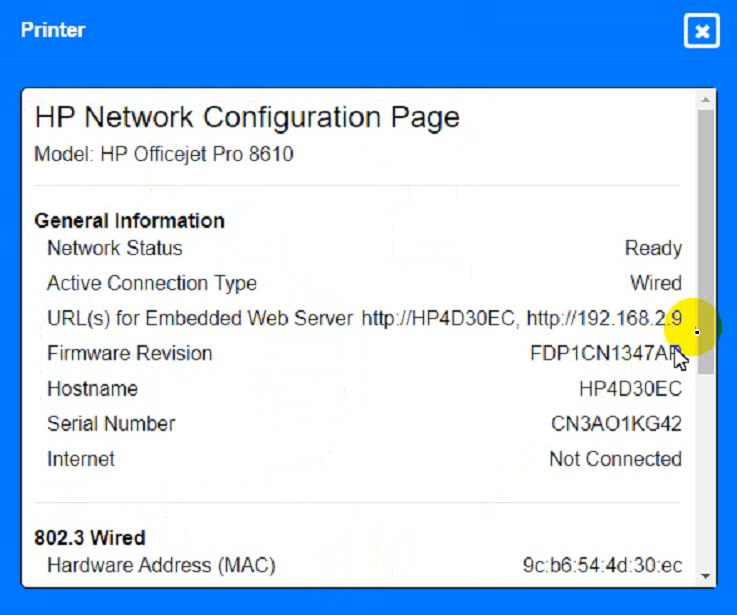

Troubleshoot all the network components and review the cable test results by Clicking on each device and cable.

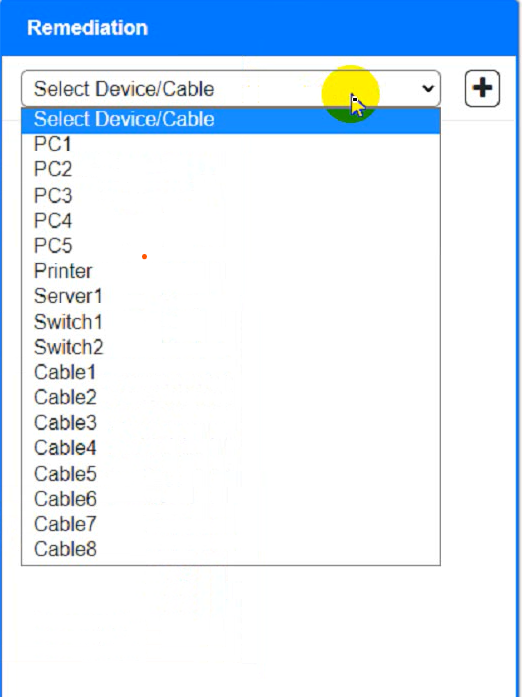

Diagnose the appropriate component(s) by identifying any components with a problem and recommend a solution to correct each problem.

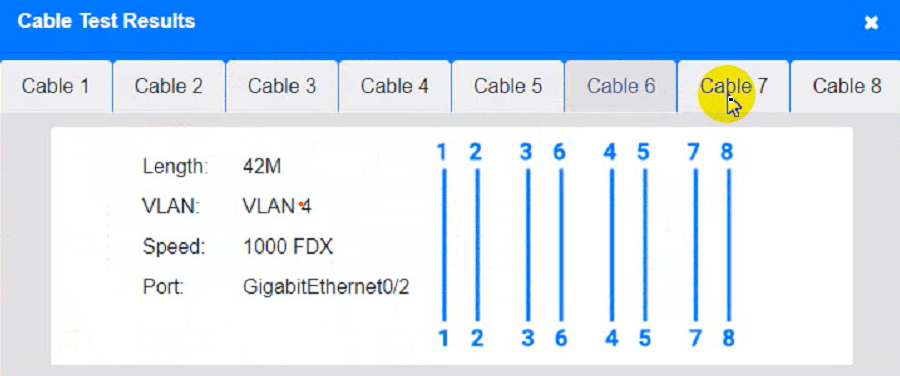

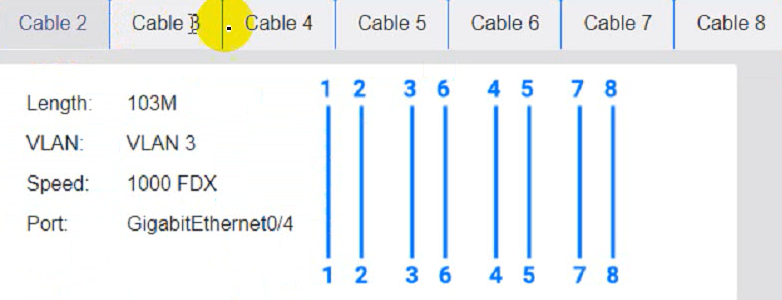

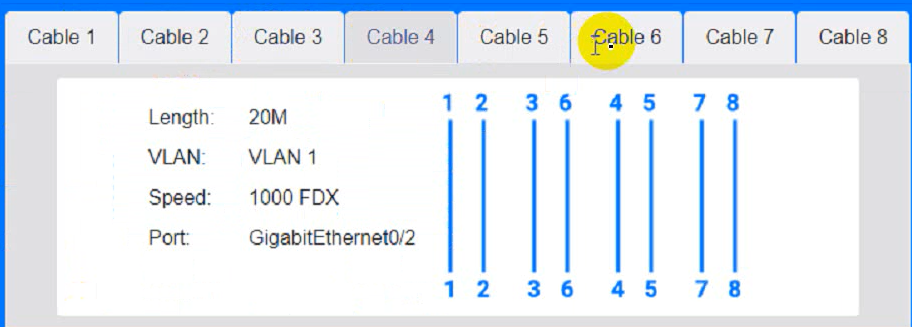

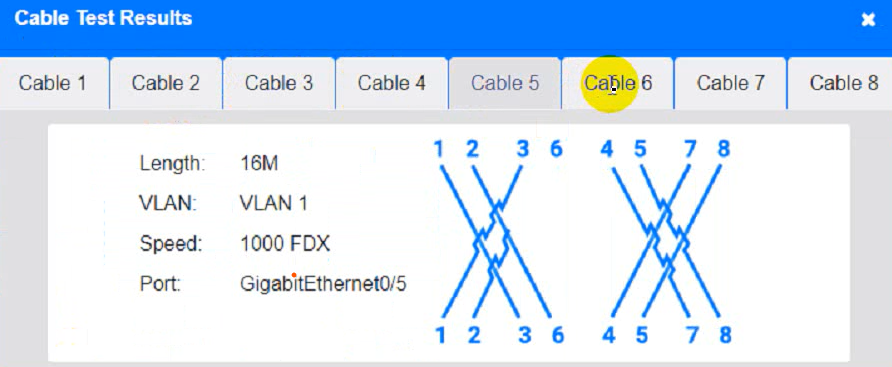

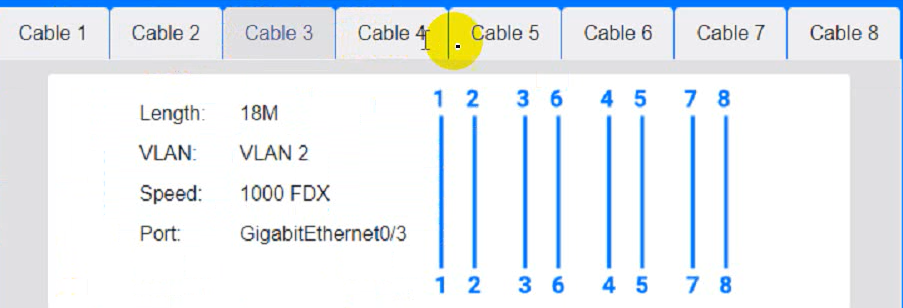

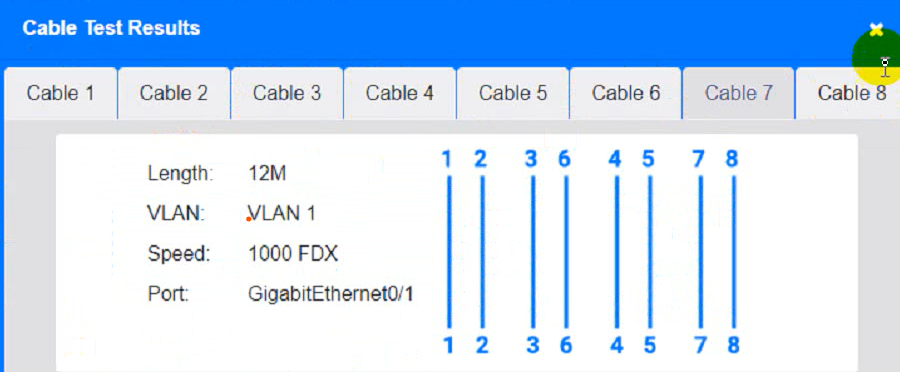

Cable Test Results:

Cable 1:

Cable 2:

Cable 3:

Cable 4:

SIMULATION

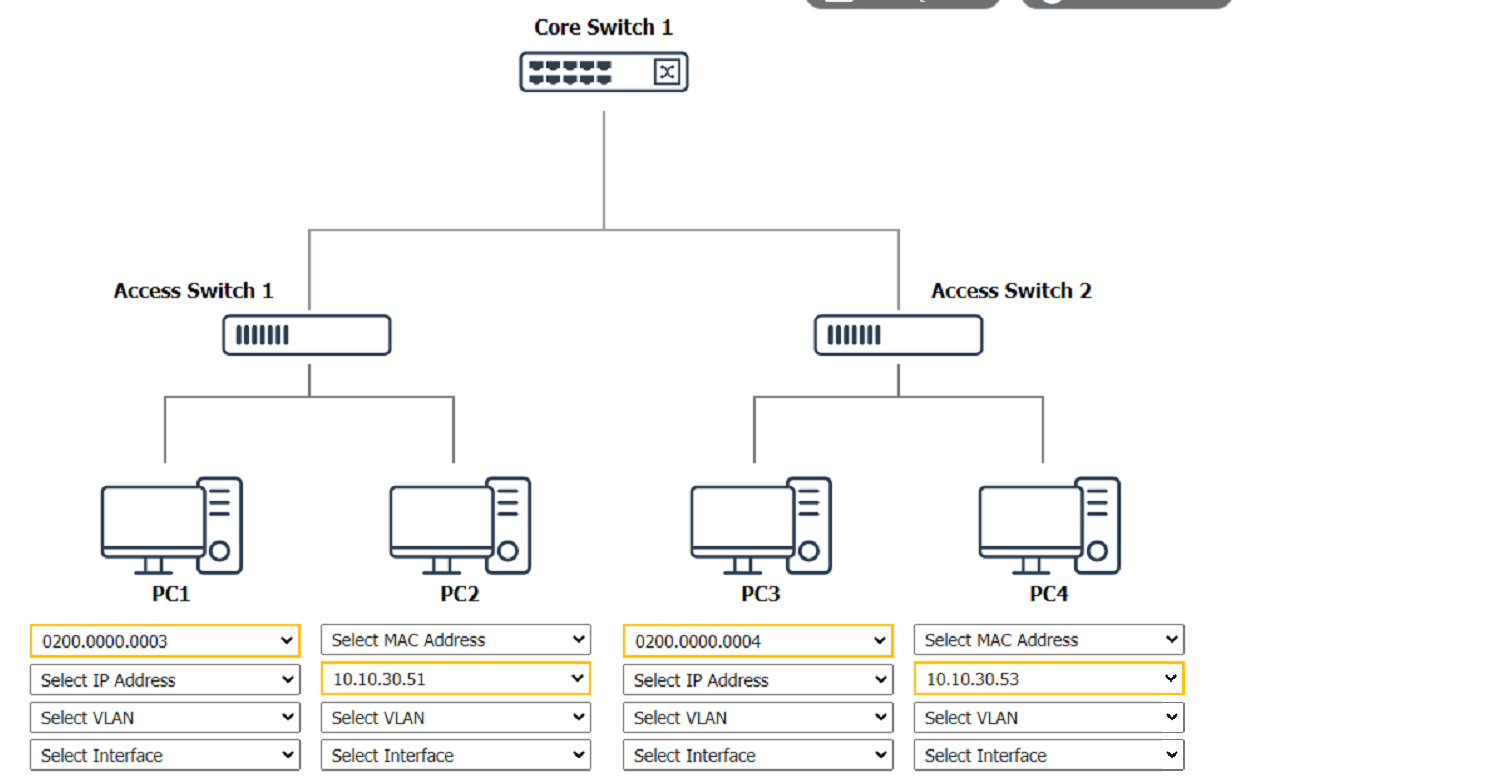

A network technician was recently onboarded to a company. A manager has

tasked the technician with documenting the network and has provided the technician With partial information from previous documentation.

Instructions:

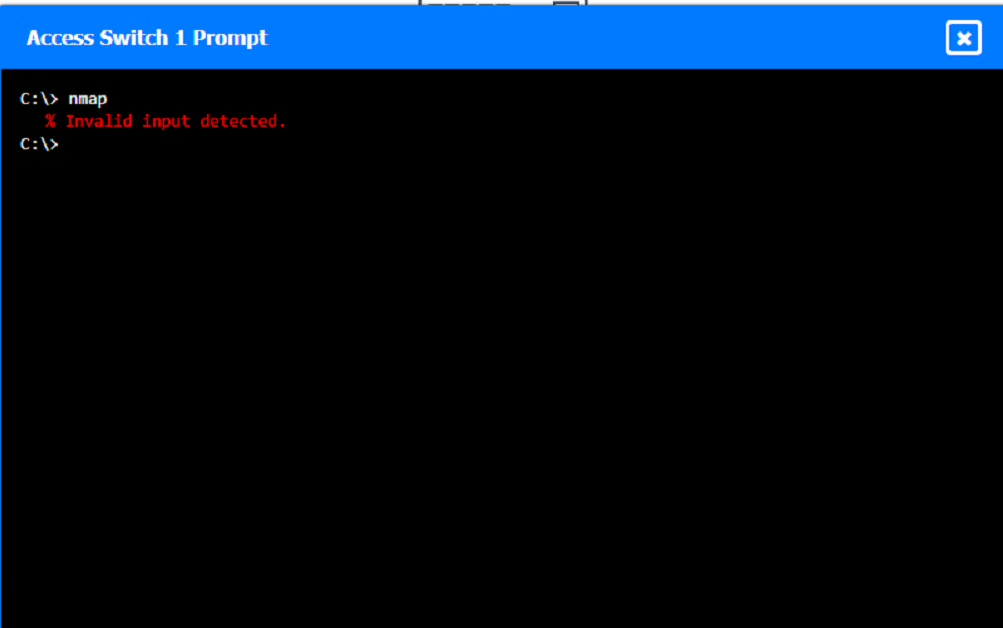

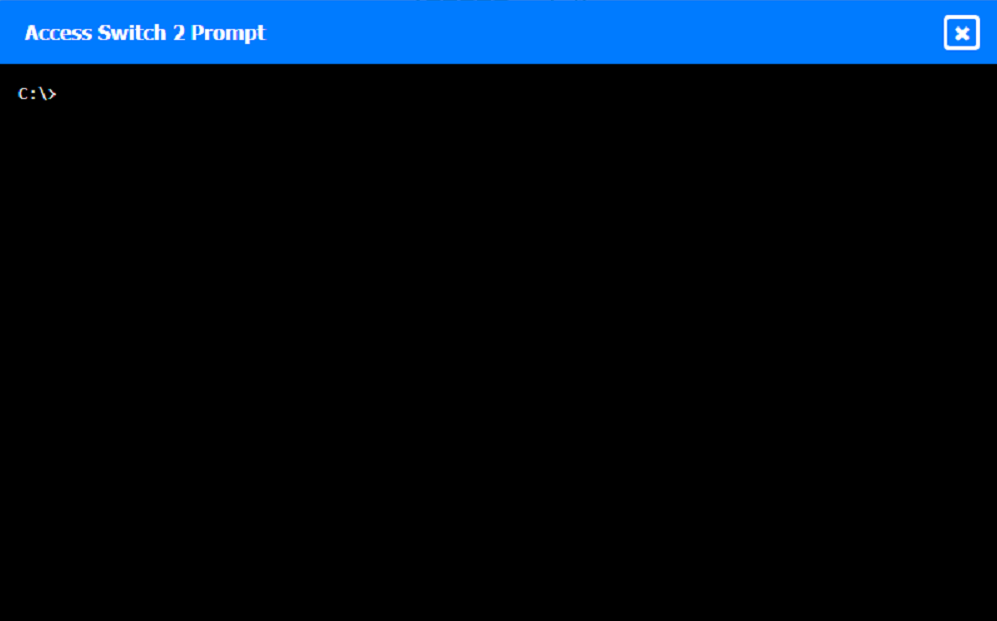

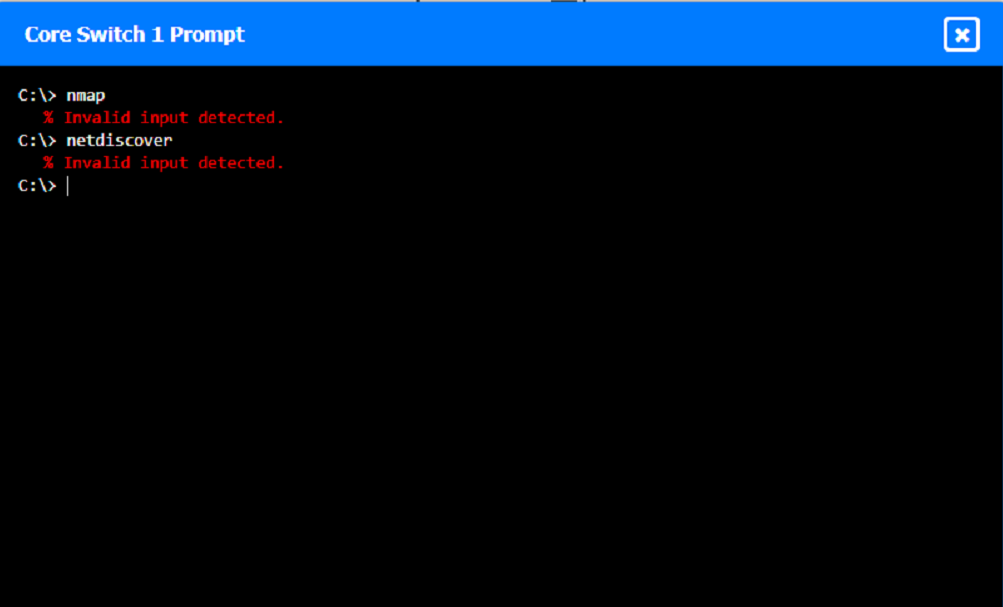

Click on each switch to perform a network discovery by entering commands into the terminal. Fill in the missing information using drop-down menus provided.

SIMULATION

You are tasked with verifying the following requirements are met in order to ensure network security.

Requirements:

Datacenter

Ensure network is subnetted to allow all devices to communicate properly while minimizing address space usage

Provide a dedicated server to resolve IP addresses and hostnames correctly and handle port 53 traffic

Building A

Ensure network is subnetted to allow all devices to communicate properly while minimizing address space usage

Provide devices to support 5 additional different office users

Add an additional mobile user

Replace the Telnet server with a more secure solution

Screened subnet

Ensure network is subnetted to allow all devices to communicate properly while minimizing address space usage

Provide a server to handle external 80/443 traffic

Provide a server to handle port 20/21 traffic

INSTRUCTIONS

Drag and drop objects onto the appropriate locations. Objects can be used multiple times and not all placeholders need to be filled.

Available objects are located in both the Servers and Devices tabs of the Drag & Drop menu.

If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.

SIMULATION

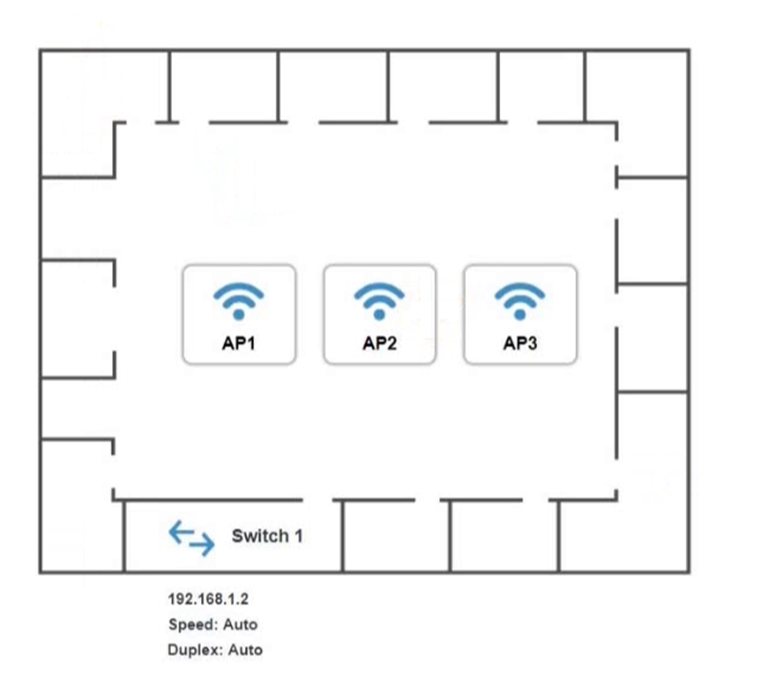

You have been tasked with setting up a wireless network in an office. The network will consist of 3 Access Points and a single switch. The network must meet the following parameters:

The SSIDs need to be configured as CorpNet with a key of S3cr3t!

The wireless signals should not interfere with each other

The subnet the Access Points and switch are on should only support 30 devices maximum

The Access Points should be configured to only support TKIP clients at a maximum speed

INSTRUCTONS

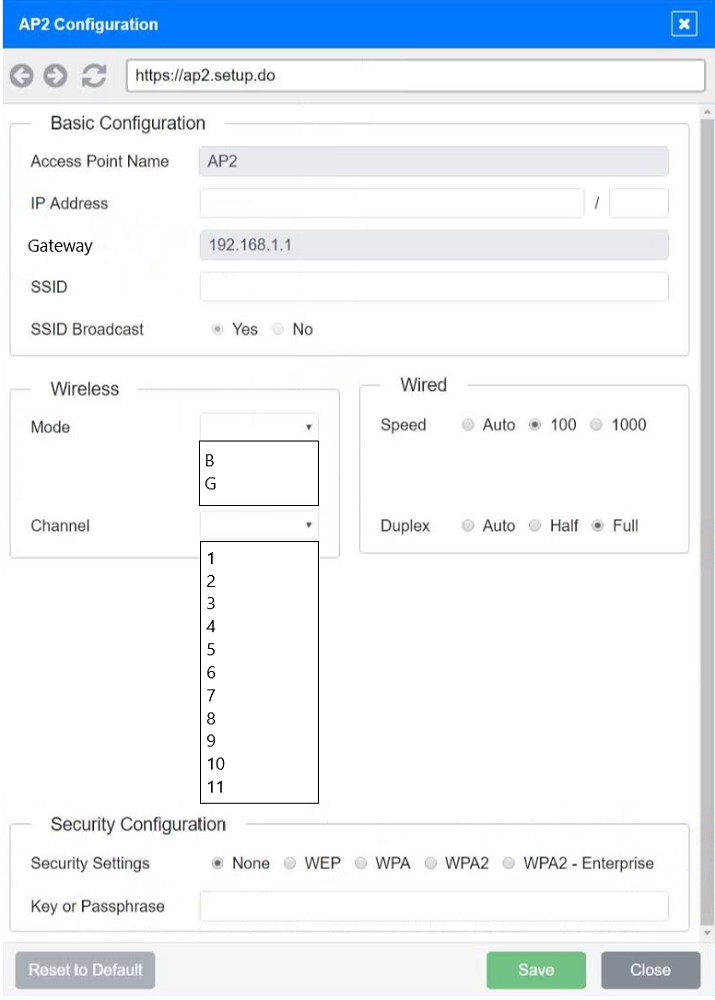

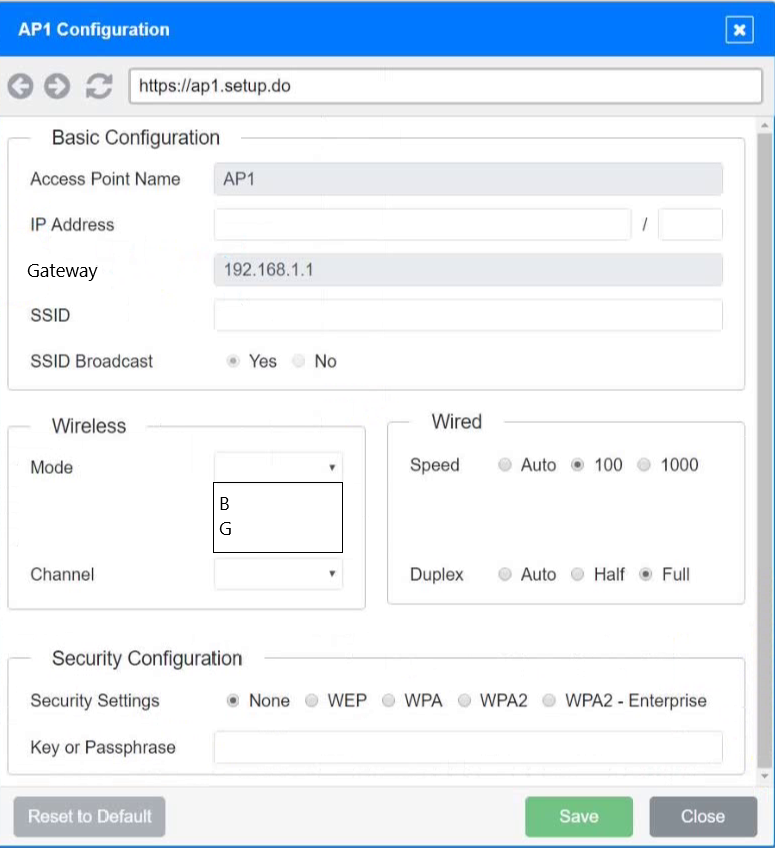

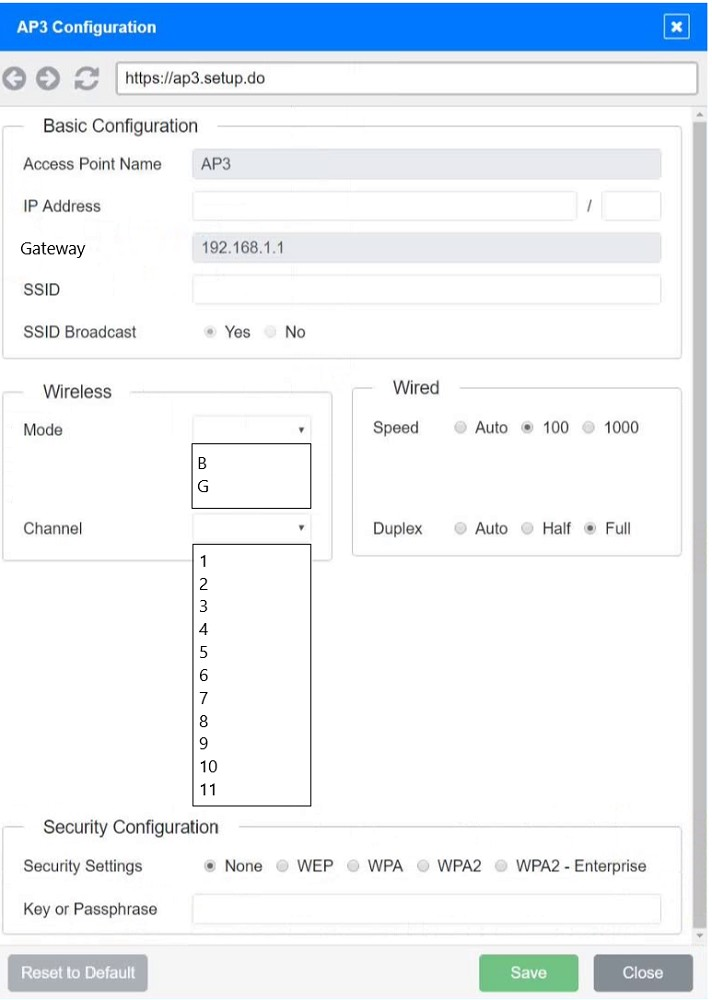

Click on the wireless devices and review their information and adjust the settings of the access points to meet the given requirements.

If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.

SIMULATION

Users are unable to access files on their department share located on file server 2.

The network administrator has been tasked with validating routing between networks

hosting workstation A and file server 2.

INSTRUCTIONS

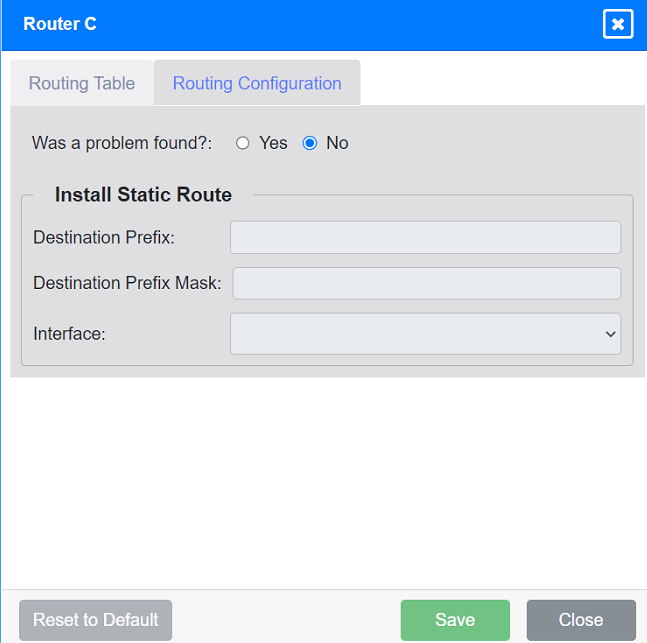

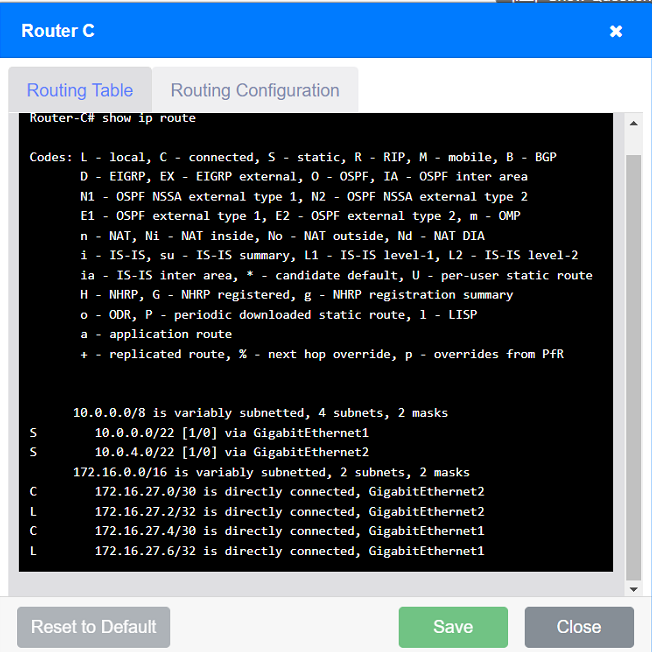

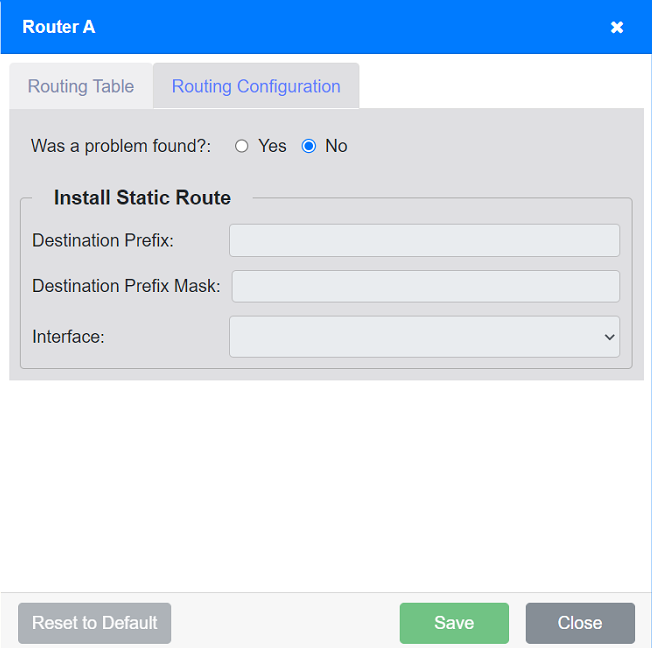

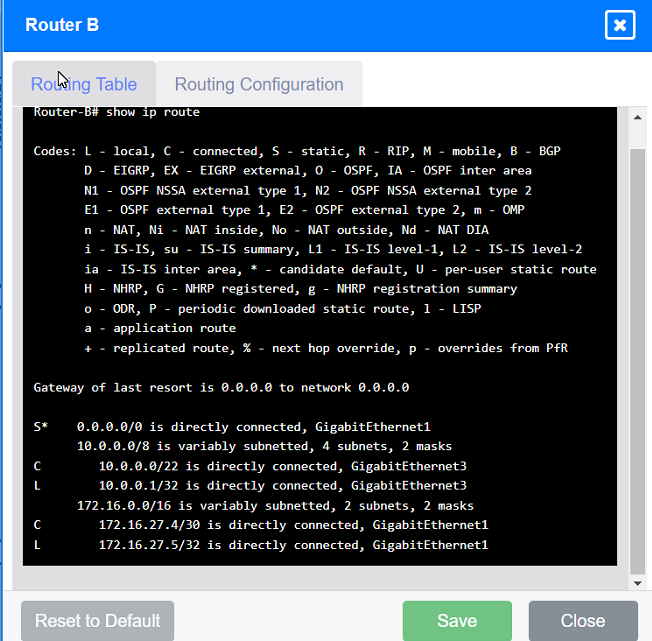

Click on each router to review output, identify any issues, and configure the appropriate solution.

If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.
